Description

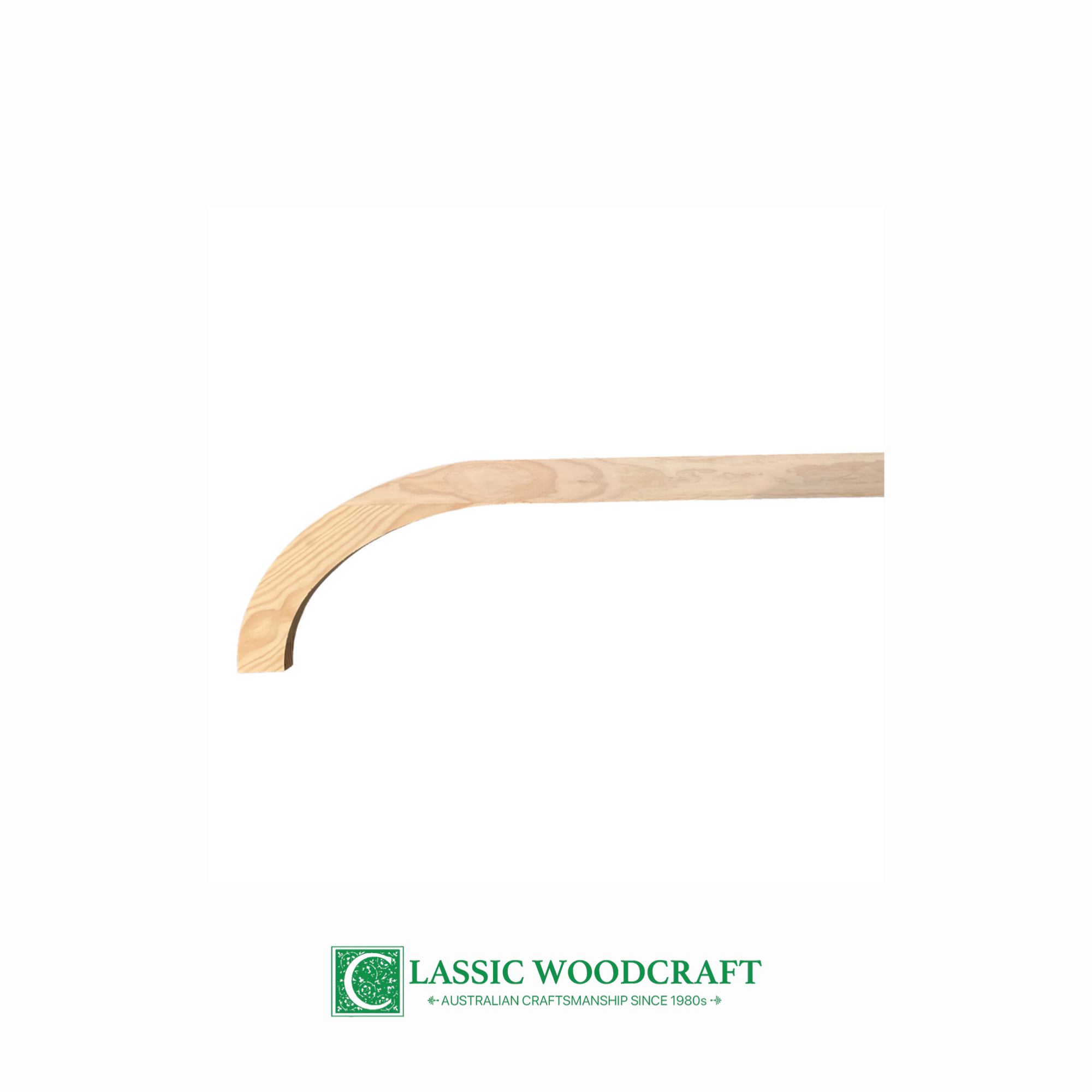

Our Bullnose Hip Rafters are machined from premium-grade timber and shaped to match the curve of the common rafters at the hip, so the two planes meet cleanly at the corner.
Sizes
Timber length: 2.2m (to suit 1.5m common) · 2.6m (1.8m) · 3.0m (2.1m) · 3.4m (2.4m) · 3.9m (2.7m) · 4.4m (3.0m)
Standard radius: 300mm and 400mm
Special radius: 350mm, 450mm, 500mm, 550mm
Timber size: 90 × 42mm, 120 × 42mm, 140 × 42mm
Key features
- Australian-made in our Bayswater workshop, machined to a consistent shape and finish
- Cut to suit the common rafter length and radius you are using
- Suited to heritage restoration and period-style residential work
Custom radii and lengths are available — send us the measurements of your existing roof and we will match them.
Before you order — how will these rafters be used?
Timber rafters form part of a roof structure. We shape rafters to the radius, length and section you specify. The section size, grade, spacing and span for your roof must be determined by your builder or engineer, and must comply with the National Construction Code and the relevant Australian Standards for your project and site.
Our timber is preservative-treated for exterior use above ground and is not supplied stress-graded. We manufacture to the specification you give us. Use your own engineer, or we can introduce you to one who will work with you directly.
Prime all faces, including cut ends, before installation.
