Our Bullnose Common Rafters are machined from premium-grade timber and shaped to a true, consistent radius, so the curve runs clean and even across the verandah. Sizes Timber length: 1.5m, 1.8m, 2.1m, 2.4m, 2.7m, 3.0mStandard radius: 300mm and 400mmSpecial radius: 350mm, 450mm, 500mm, 550mmTimber size: 90 × 42mm, 120 × 42mm, 140 × 42mm Key features Australian-made in our Bayswater workshop, machined to a consistent shape and finish Cut to the radius and length your roof requires Suited to heritage restoration and period-style residential work Custom radii and lengths are available — send us the measurements of your existing roof and we will match them. How to measure the radius of your existing rafter The radius is measured on the top edge of the rafter. On a complete bullnose rafter the curve is a quarter circle, so the height of the curve equals the radius (H = R). Lay the rafter on its side on a flat floor. Run a straight edge along the top edge of the straight section, out past the curve. Measure straight down from that line to the end of the curve on the top edge. That measurement is your radius. Measure the timber section (depth × thickness) on the straight part of the rafter. If the end of your rafter is broken, rotted or cut short, the height will read less than the true radius, and older hand-cut rafters often don't follow a perfect arc. Trace the curved end onto paper or cardboard and send us a photo with a tape measure in shot, or send us a short sample. We hold templates for dozens of rafter profiles and will match it. Before you order — how will these rafters be used? Timber rafters form part of a roof structure. We shape rafters to the radius, length and section you specify. The section size, grade, spacing and span for your roof must be determined by your builder or engineer, and must comply with the National Construction Code and the relevant Australian Standards for your project and site. Our timber is preservative-treated for exterior use above ground and is not supplied stress-graded. We manufacture to the specification you give us. Use your own engineer, or we can introduce you to one who will work with you directly. Prime all faces, including cut ends, before installation.

Read more less

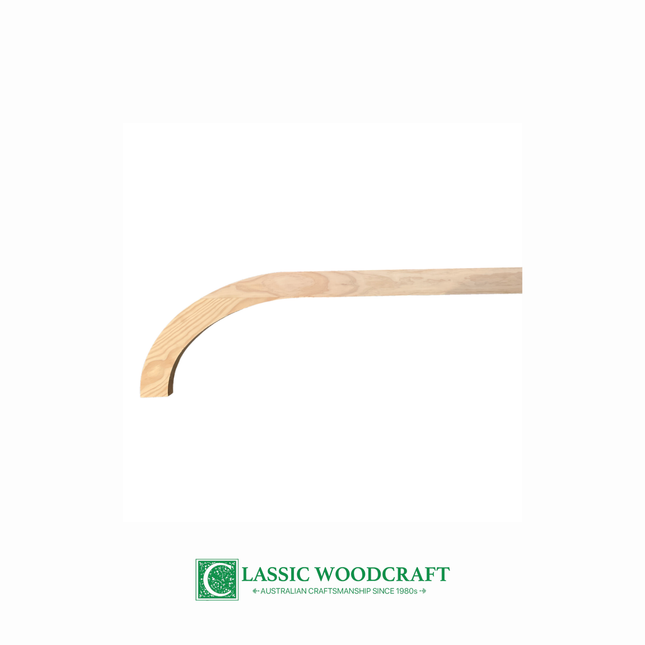

Our Bullnose Hip Rafters are machined from premium-grade timber and shaped to match the curve of the common rafters at the hip, so the two planes meet cleanly at the corner. Sizes Timber length: 2.2m (to suit 1.5m common) · 2.6m (1.8m) · 3.0m (2.1m) · 3.4m (2.4m) · 3.9m (2.7m) · 4.4m (3.0m)Standard radius: 300mm and 400mmSpecial radius: 350mm, 450mm, 500mm, 550mmTimber size: 90 × 42mm, 120 × 42mm, 140 × 42mm Key features Australian-made in our Bayswater workshop, machined to a consistent shape and finish Cut to suit the common rafter length and radius you are using Suited to heritage restoration and period-style residential work Custom radii and lengths are available — send us the measurements of your existing roof and we will match them. Before you order — how will these rafters be used? Timber rafters form part of a roof structure. We shape rafters to the radius, length and section you specify. The section size, grade, spacing and span for your roof must be determined by your builder or engineer, and must comply with the National Construction Code and the relevant Australian Standards for your project and site. Our timber is preservative-treated for exterior use above ground and is not supplied stress-graded. We manufacture to the specification you give us. Use your own engineer, or we can introduce you to one who will work with you directly. Prime all faces, including cut ends, before installation.

Read more less

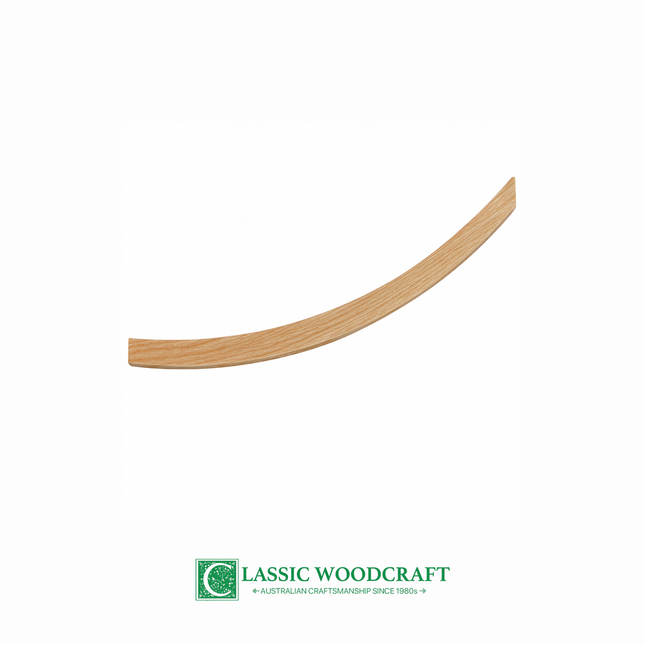

Our Concave Common Rafters are machined from premium-grade timber and shaped to a true, consistent concave curve, so the sweep runs clean and even across the verandah. Sizes Timber length: 1.5m, 1.8m, 2.1m, 2.4m, 2.7m, 3.0mTimber size: 90 × 42mm, 120 × 42mm, 140 × 42mm Key features Australian-made in our Bayswater workshop, machined to a consistent shape and finish Cut to the curve and length your roof requires Suited to heritage restoration and period-style residential work Custom curves and lengths are available — send us the measurements of your existing roof and we will match them. Before you order — how will these rafters be used? Timber rafters form part of a roof structure. We shape rafters to the curve, length and section you specify. The section size, grade, spacing and span for your roof must be determined by your builder or engineer, and must comply with the National Construction Code and the relevant Australian Standards for your project and site. Our timber is preservative-treated for exterior use above ground and is not supplied stress-graded. We manufacture to the specification you give us. Use your own engineer, or we can introduce you to one who will work with you directly. Prime all faces, including cut ends, before installation.

Read more less

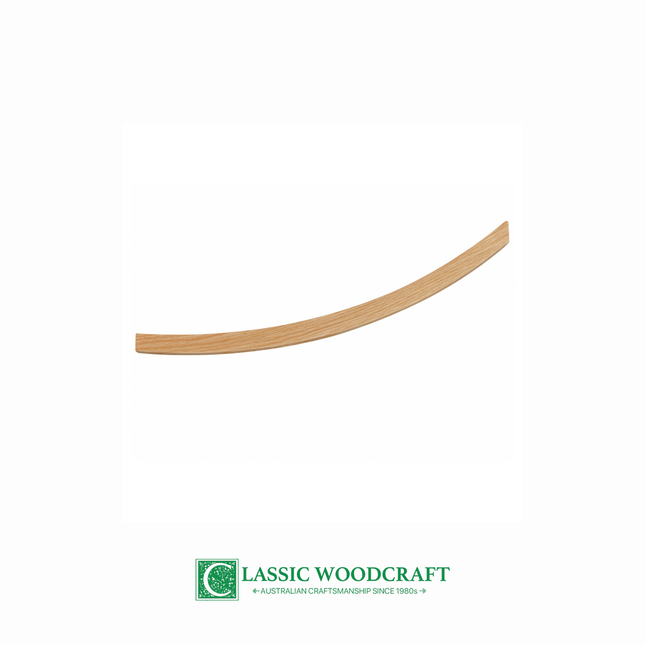

Our Concave Hip Rafters are machined from premium-grade timber and shaped to match the concave curve of the common rafters at the hip, so the two planes meet cleanly at the corner. Sizes Timber length: 2.2m (to suit 1.5m common) · 2.6m (1.8m) · 3.0m (2.1m) · 3.4m (2.4m) · 3.9m (2.7m) · 4.4m (3.0m)Timber size: 90 × 42mm, 120 × 42mm, 140 × 42mm Key features Australian-made in our Bayswater workshop, machined to a consistent shape and finish Cut to suit the common rafter length and curve you are using Suited to heritage restoration and period-style residential work Custom curves and lengths are available — send us the measurements of your existing roof and we will match them. Before you order — how will these rafters be used? Timber rafters form part of a roof structure. We shape rafters to the curve, length and section you specify. The section size, grade, spacing and span for your roof must be determined by your builder or engineer, and must comply with the National Construction Code and the relevant Australian Standards for your project and site. Our timber is preservative-treated for exterior use above ground and is not supplied stress-graded. We manufacture to the specification you give us. Use your own engineer, or we can introduce you to one who will work with you directly. Prime all faces, including cut ends, before installation.

Read more less

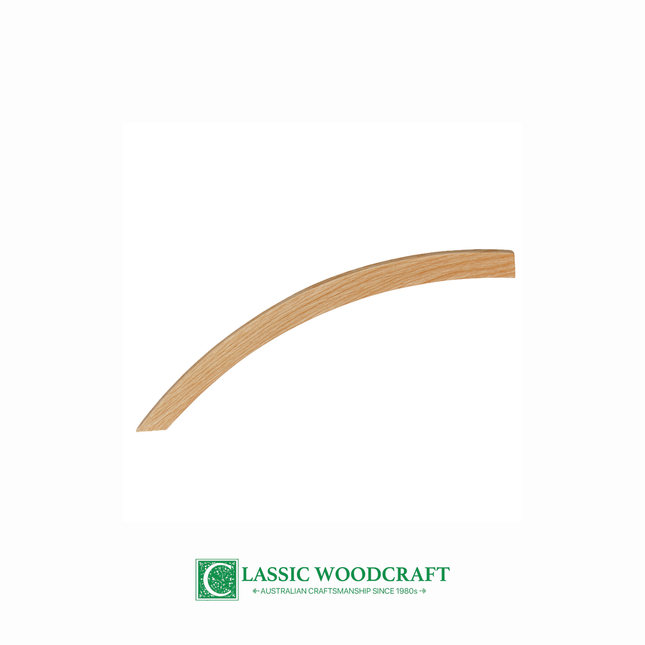

Our Convex Common Rafters are machined from premium-grade timber and shaped to a true, consistent convex curve, so the sweep runs clean and even across the verandah. Sizes Timber length: 1.5m, 1.8m, 2.1m, 2.4m, 2.7m, 3.0mTimber size: 90 × 42mm, 120 × 42mm, 140 × 42mm Key features Australian-made in our Bayswater workshop, machined to a consistent shape and finish Cut to the curve and length your roof requires Suited to heritage restoration and period-style residential work Custom curves and lengths are available — send us the measurements of your existing roof and we will match them. Before you order — how will these rafters be used? Timber rafters form part of a roof structure. We shape rafters to the curve, length and section you specify. The section size, grade, spacing and span for your roof must be determined by your builder or engineer, and must comply with the National Construction Code and the relevant Australian Standards for your project and site. Our timber is preservative-treated for exterior use above ground and is not supplied stress-graded. We manufacture to the specification you give us. Use your own engineer, or we can introduce you to one who will work with you directly. Prime all faces, including cut ends, before installation.

Read more less

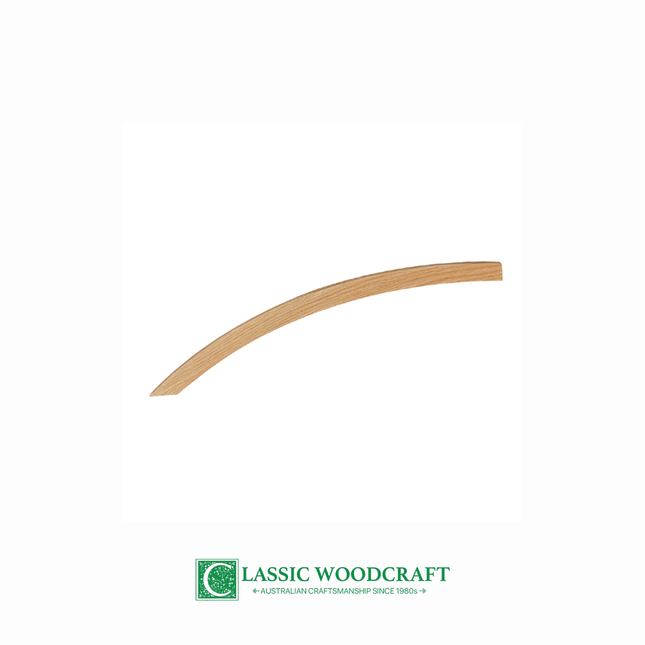

Our Convex Hip Rafters are machined from premium-grade timber and shaped to match the convex curve of the common rafters at the hip, so the two planes meet cleanly at the corner. Sizes Timber length: 2.2m (to suit 1.5m common) · 2.6m (1.8m) · 3.0m (2.1m) · 3.4m (2.4m) · 3.9m (2.7m) · 4.4m (3.0m)Timber size: 90 × 42mm, 120 × 42mm, 140 × 42mm Key features Australian-made in our Bayswater workshop, machined to a consistent shape and finish Cut to suit the common rafter length and curve you are using Suited to heritage restoration and period-style residential work Custom curves and lengths are available — send us the measurements of your existing roof and we will match them. Before you order — how will these rafters be used? Timber rafters form part of a roof structure. We shape rafters to the curve, length and section you specify. The section size, grade, spacing and span for your roof must be determined by your builder or engineer, and must comply with the National Construction Code and the relevant Australian Standards for your project and site. Our timber is preservative-treated for exterior use above ground and is not supplied stress-graded. We manufacture to the specification you give us. Use your own engineer, or we can introduce you to one who will work with you directly. Prime all faces, including cut ends, before installation.

Read more less

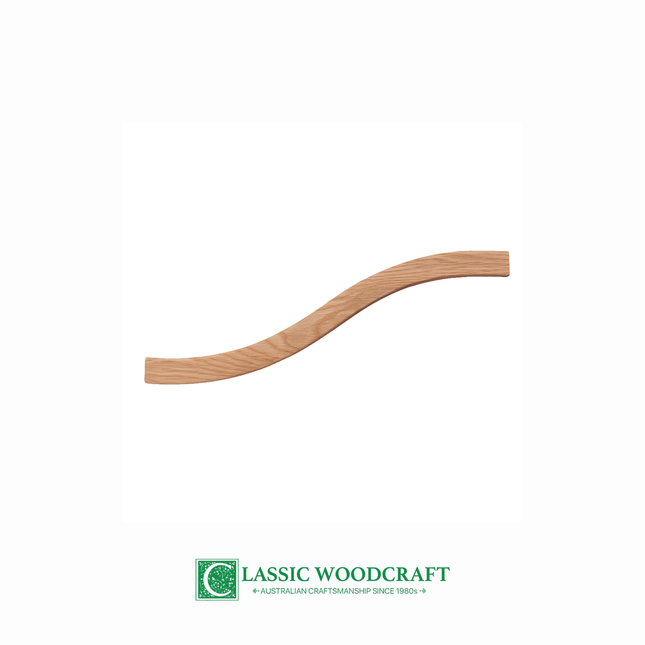

Our Gothic Common Rafters are machined from premium-grade timber and shaped to a true, consistent gothic profile, so the line runs clean and even across the verandah. Sizes Timber length: 1.5m, 1.8m, 2.1m, 2.4m, 2.7m, 3.0mTimber size: 90 × 42mm, 120 × 42mm, 140 × 42mm Key features Australian-made in our Bayswater workshop, machined to a consistent shape and finish Cut to the profile and length your roof requires Suited to heritage restoration and period-style residential work Custom profiles and lengths are available — send us the measurements of your existing roof and we will match them. Before you order — how will these rafters be used? Timber rafters form part of a roof structure. We shape rafters to the profile, length and section you specify. The section size, grade, spacing and span for your roof must be determined by your builder or engineer, and must comply with the National Construction Code and the relevant Australian Standards for your project and site. Our timber is preservative-treated for exterior use above ground and is not supplied stress-graded. We manufacture to the specification you give us. Use your own engineer, or we can introduce you to one who will work with you directly. Prime all faces, including cut ends, before installation.

Read more less

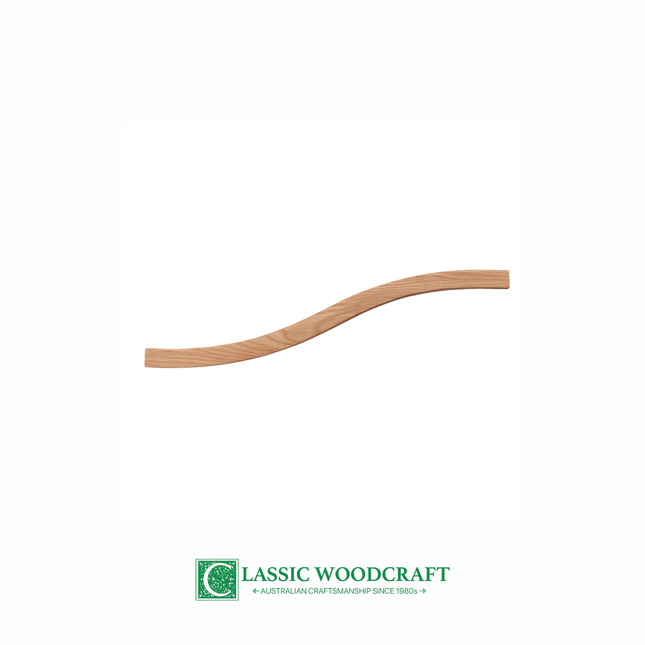

Our Gothic Hip Rafters are machined from premium-grade timber and shaped to match the gothic profile of the common rafters at the hip, so the two planes meet cleanly at the corner. Sizes Timber length: 2.2m (to suit 1.5m common) · 2.6m (1.8m) · 3.0m (2.1m) · 3.4m (2.4m) · 3.9m (2.7m) · 4.4m (3.0m)Timber size: 90 × 42mm, 120 × 42mm, 140 × 42mm Key features Australian-made in our Bayswater workshop, machined to a consistent shape and finish Cut to suit the common rafter length and profile you are using Suited to heritage restoration and period-style residential work Custom profiles and lengths are available — send us the measurements of your existing roof and we will match them. Before you order — how will these rafters be used? Timber rafters form part of a roof structure. We shape rafters to the profile, length and section you specify. The section size, grade, spacing and span for your roof must be determined by your builder or engineer, and must comply with the National Construction Code and the relevant Australian Standards for your project and site. Our timber is preservative-treated for exterior use above ground and is not supplied stress-graded. We manufacture to the specification you give us. Use your own engineer, or we can introduce you to one who will work with you directly. Prime all faces, including cut ends, before installation.
